Boltable Rack Support System

Features
  • The most popular international modular support system
  • Heavy duty support system
  • Suitable for ceiling, wall/trench orfloor applications.
  • Installed in some of the most prestigious projects in India including Airports.
  • Special fitments designed for robustness, appearance and speedy execution
  • Cantilever racks can be mounted directly on wall or welded to columns
  • Maximum length of boltable rack 1100 mm has been used in thousands at particular locations
  • Factory and field tested at multiple locations over many years.
  • Computerized testing for Seismic & wind loads can be done if contract provides for.
  • Available finishes: Hot Dip Galvanized (HDG), Powder Coated (PC)
Product Code Standard Length of Stand (H)
BRKS500HD 500mm
BRKS1000HD 1000mm
BRKS1250HD 1250mm
BRK52500HD 2500mm
BRKS3000HD 3000mm
* 4000mm manufactured based on volumes
Product Code Tray L (mm) Rack L (mm)
BRK225 150 225
BRK275 200 275
BRK375 300 375
BRK525 450 525
BRK575 500 575
BRK675 600 675
BRK825 750 825
BRK975 900 975
BRK1100 1000 1100
Accessories
Boltable Rack Stand (BRKS) 100 x 50 x 3.5 mm
Boltable Rack Stand (BRKS) 65 x 50 x 3.0mm
Boltable Rack (upto 375mm) (BRK)
Boltable Rack (Above 375mm) (BRK)
Boltable Rack Stand Cap
Boltable Rack Stand Coupler
Boltable Rack Stand Welded Plate 65 x 50 x 3.0rnm
BRK Stand Cap Inclined
Cleat Angle & Wall Support Bracket

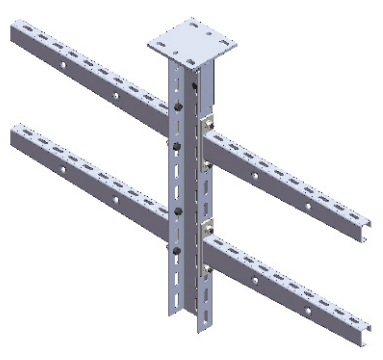

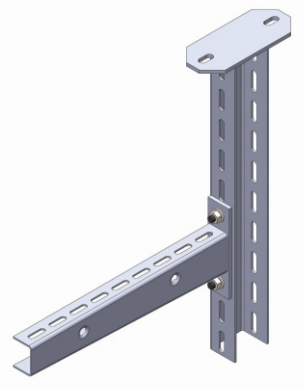

Boltable Rack Stand Welded Plate Application

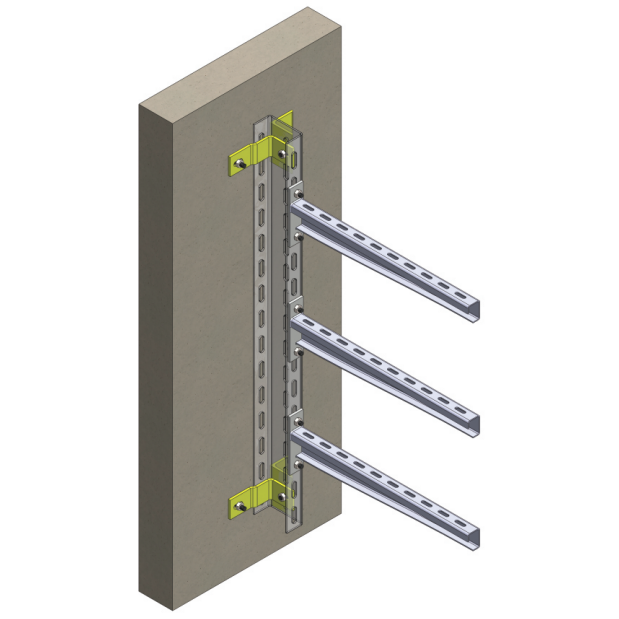

Boltable Rack Stand 100 x 50 x 3.5mm Application
