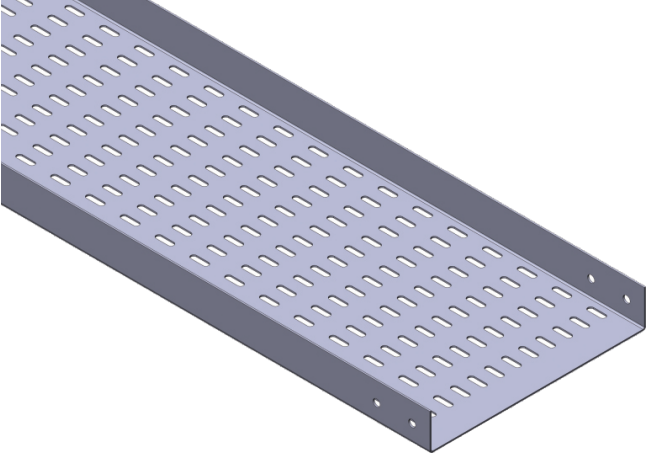

Perforated Cable Trays

Features
  • Punch pattern adopted as per international practices.
  • Pattern adopted results in less distortion during various processes. When contract provides, intermediate coupler holes provided on flanges folds.
  • ChoiceofStraightflange or Reverse inward flangeavailable to customer.
  • Bottom coupling on wider than 600 mm trays ensures full alignment during installation and reduces deflection atjoints.
  • Liberal space between punch lines gives adequate space for easy cutting shorter.
  • Additional features like cutouts and knockouts Can be provided as per mutual agreement.
  • Innovative earth flat mounting clamp available.
  • Available Finishes: Hot Dip Galvanized (H DC), Pre Galvanized, Aluminum, SS304, 55316, Powder Coated (PC) , HDG + PC, Marine Grade Aluminum (special applications)
  • Standard length :2500/3000mm
  • Certified for electrica I continuity and impact test in accordance with I EC61537
Width
(mm)
Height 25mm Height 40mm Height 50mm Height 75mm Height 100mm
1.6 2.0 2.5 1.6 2.0 2.5 1.2 1.6 2.0 2.5 1.6 2.0 2.5 1.6 2.0 2.5
100 x x x x x x
150 x x x x x x
200
300
450 x
600 x x x x x
750 x x x x x x x x
900 x x x x x x x x x x
1000 x x x x x x x x x x
1200 x x x x x x x x x x
3mm thick Perforated cable trays can also be manufactured depending on quantities.
Accessories

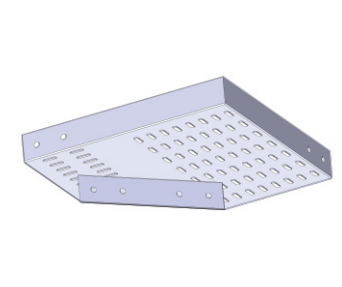

90 Degree Horizontal Bend

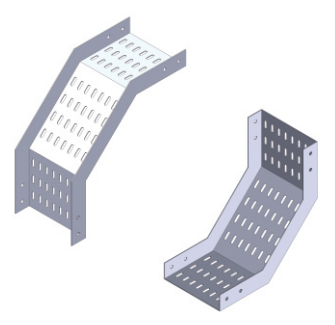

90 Degree Vertical External / Internal

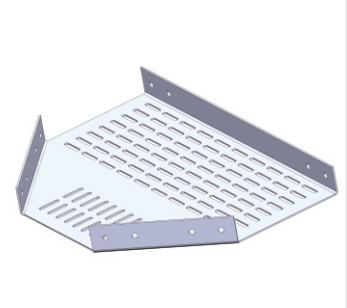

Equal Tee

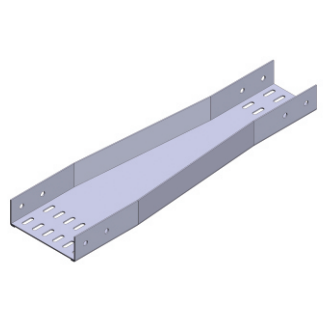

Center Reducer

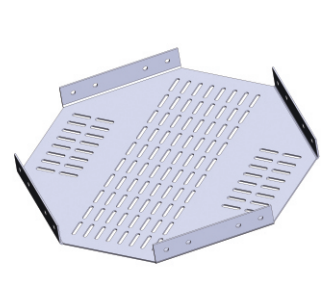

Cross

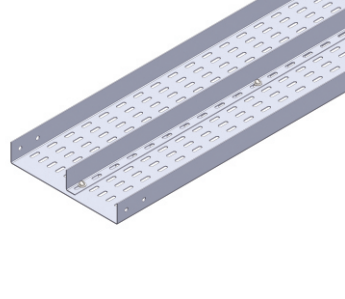

Boltable Partition

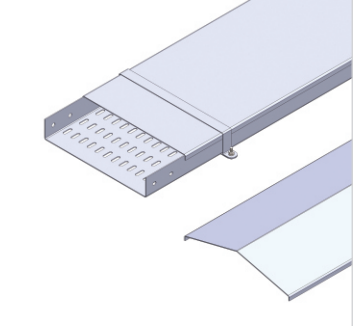

Flat Cover / Dome Cover
Standard Coupler
Sleeeve Coupler
