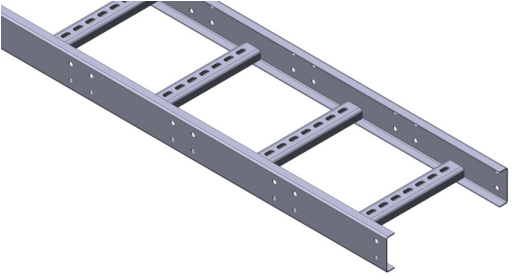

Welded Rung Ladders

Features
  • Standardized side rail and rung sections ensure faster deliveryand uniformity.
  • Data available on load tests of various sizes, different combinations.
  • Intermediate coupler holes facilitate mounting of accessories like earth flats, provide ready coupling holes on cutting and promote better drainage during galvanizing. Holes pattern also display thickness of materials used.
  • Larger bends designed with rungs welded to frames, ensures good hot dip galvanization
  • Assembly of ladders of pattern adopted by PUK group companies offered for better galvanizing result.
  • Innovative clamps for earth flats, cables, covers and hold down clamp arrangement options available.
  • Available Finishes: Hot Dip Galvanized (HDG), Pre Galvanized, Aluminum, 55304, 55316, Powder Coated (PC), HDG + PC (special applications)
  • Standard length:2500/3000mm
  • Certified for electrical continuity and Impact test In accordance with I EC61537
Width
(mm)
SR 15x50x15mm
R 30x15mm
SR 20x75x20mm
R 30x15mm
SR 20x75x20mm
R 40x20mm
SR 20x100x20mm
R 40x20mm
1.6 2.0 2.5 2.0 2.5 2.0 2.5 2.0 2.5 2.0
100 x x x x x x x
150
200
300
450 x
600 x
750 x x
900 x x x x x
1000 x x x x x
SR = Side Rail  |  R = Rung
Other side rail and rung sections can also be manufactured depending on quantity.
Accessories

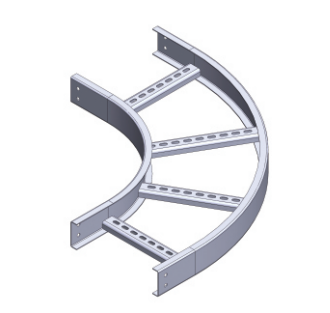

90 Degree Horizontal Bend

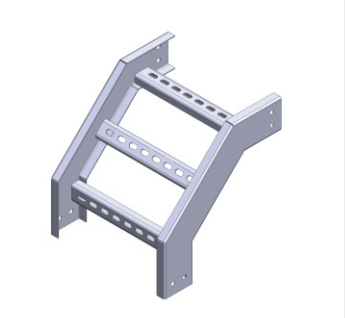

90 Degree Vertical External
90 Degree Vertical Internal

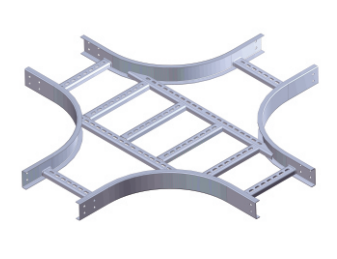

Cross

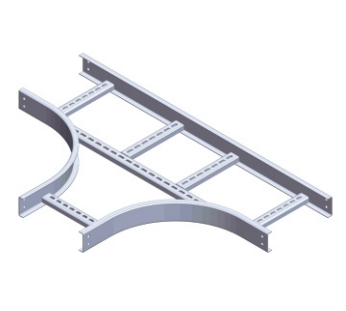

Equal Tee

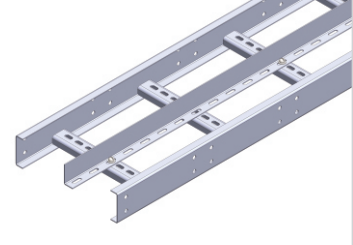

Boltable Partition

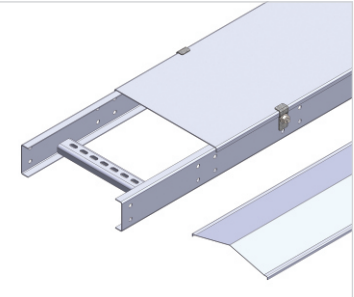

Flat Cover/ Dome Cover
Standard Couple
Heavy Duty Coupler
Horizontal Hinged Coupler
Vertical Hinged Coupler
